A simple and clean presentation of code for nearest neighbors, linear regression, and logistic regression. We've carefully written the code to make it as close to pseudocode as possible.

A quick beginner’s guide to coding the fundamental algorithms in ML has been on my todo-list for a while. Heavily inspired by Napkin ML

Table of Contents

More coming soon!

This post hides some of the boilerplate code: if you want to extend these tutorials or play around with them, check them out here

The Basic Imports

A machine learner never leaves home without NumPy

Warning: If you don’t know NumPy, then this article may be difficult to comprehend. The Scipy Lectures are a good resource.

import numpy as np

Introducing our Dataset

We’ll use a simple 2 dimensional nonlinear dataset to run our algorithms, so that it’s easier to visualize, yet complex enough that we see different types of behaviour from different algorithms.

# See Github for the full code - hidden for brevity
Xs = ...
Ys = ...
test_Xs = ...
test_Ys = ...

def accuracy(model,X,Y):
    pass
def plot(model,X,Y):
    pass

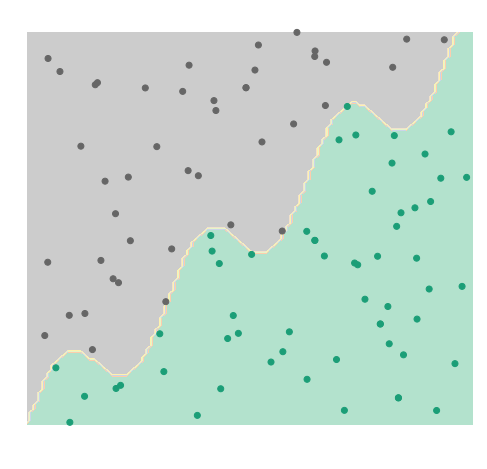

For each algorithm, we’ll train it on a dataset with 1000 samples, and plot the decision curve learned by the algorithm. For example, here’s the “optimal” classifier. The color of the point is the true class, and the color of the background is what the classifier predicts.

Show the code
import matplotlib.pyplot as plt
%matplotlib inline

Xs = np.random.rand(1000,2)*10
Ys = np.array([x[1] > x[0]+np.sin(x[0]*2) for x in Xs])

test_Xs = np.random.rand(1000,2)*10
test_Ys = np.array([x[1] > x[0]+np.sin(x[0]*2) for x in test_Xs])

def accuracy(model,X,Y):
    return np.count_nonzero([model.predict(x)==y for (x,y) in zip(X,Y)])/len(X)

def plot(model,X,Y,shades=False,nPoints=100,**kwargs):
    plt.figure(figsize=(8,8))
    h = 100
    x_min, y_min = np.min(X,axis=0)
    x_max, y_max = np.max(X,axis=0)

    xx, yy = np.meshgrid(np.linspace(x_min, x_max, h),
                         np.linspace(y_min, y_max, h))

    # here "model" is your model's prediction (classification) function
    Z = np.array([model.predict(x) for x in np.c_[xx.ravel(), yy.ravel()]])

    # Put the result into a color plot
    Z = Z.reshape(xx.shape)
    plt.contourf(xx, yy, Z, cmap=plt.cm.Pastel2,**kwargs)
    subpoints = np.random.choice(len(X),nPoints)
    plt.scatter(X[subpoints, 0], X[subpoints, 1], c=Y[subpoints], cmap=plt.cm.Dark2)
    plt.axis('off')

    # Plot also the training points
class Dummy:
    def predict(x):
        return x[1] > x[0]+np.sin(x[0]*2)
plot(Dummy,Xs,Ys)

K-Nearest Neighbors

$k$-Nearest Neighbors is a non-parametric machine learning model that predicts classes for points x based on the k closest values to x seen in the training set.

from collections import Counter

class kNN:
    def __init__(self,k=1):
        self.k = k

    def fit(self,xs,ys,k=1):
        """
        Since kNN is nonparametric, we need to keep the training data around during test time.
        k-NN doesn't do any additional preprocessing
        """
        self.xs = xs
        self.ys = ys

    def predict(self,x):
        # Sort training points by distance to the new point
        closest_points = np.argsort(np.linalg.norm(self.xs-x,axis=1))[:self.k]
        # Get labels of these close points
        closest_labels = self.ys[closest_points]
        # Return the most common label
        return Counter(closest_labels).most_common(1)[0][0]

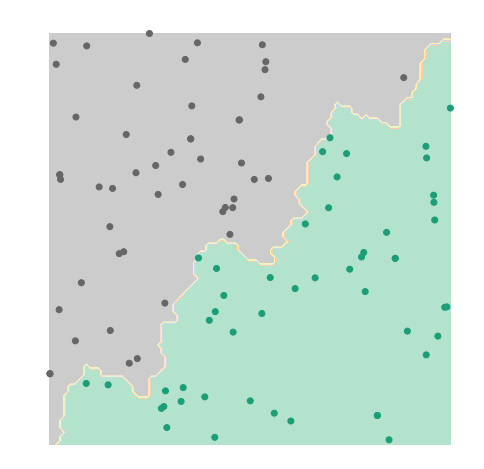

Show the code
kNN_classifier = kNN(1)
kNN_classifier.fit(Xs,Ys)
plot(kNN_classifier,test_Xs,test_Ys)
print("Accuracy is ",accuracy(kNN_classifier,test_Xs,test_Ys))

Accuracy is  0.978

Linear Regression

Linear regression attempts to find the best linear model $f(x) =w^Tx$ to fit the data. The training procedure revolves around solving the following equation

$$w^* = \arg\min_{w \in \mathbb{R}^d} \sum_{i=1}^n (w^TX_i - y_i)^2 $$

We can write this in matrix form, where $X$ is a $n \times d$ matrix where each row corresponds to a training point.

$$w^* = \arg\min_{w \in \mathbb{R}^d} \|Xw-y\|_2^2$$

Using matrix calculus, we have that $\nabla_w = X^T(Xw-y)$, so the optimal solution $w^*$ satisfies

$$(X^TX)w^* = X^Ty$$
class LinReg:
    def fit(self,xs,ys):
        """
        Solving (X^TX)w^* = X^Ty
        """

        self.w = np.linalg.solve(xs.T.dot(xs),xs.T.dot(ys))

    def predict(self,x):
        return self.w.dot(x) > 0.5 # If predict >0.5, then say class 1, else class 0

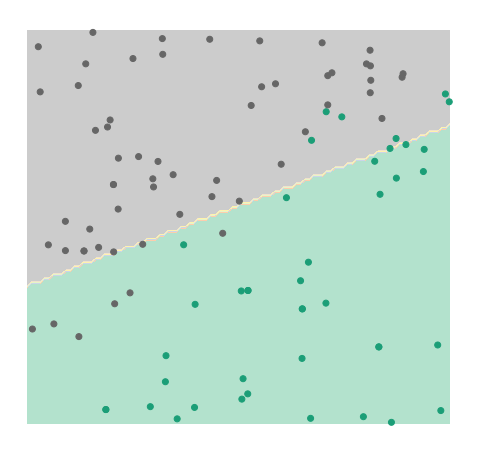

Show the code
linear_classifier = LinReg()
linear_classifier.fit(Xs,Ys)
print("Accuracy is ",accuracy(linear_classifier,test_Xs,test_Ys))
plot(linear_classifier,test_Xs,test_Ys)

Accuracy is  0.856

Logistic Regression

Logistic regression is similar to linear regression, but specializes to classification tasks by predicting probabilities $p(y_i=1~\mid~x_i)$.

If we naively apply linear regression to predicting probabilities, we’ll be maximizing $p(y=1|x) = w^Tx$. However, since $w^Tx$ can be between $(-\infty, \infty)$, it matches poorly to the desired output $(0,1)$.

Estimating the odds $\cfrac{p(y=1~\midx)}{p(y=0\mid~x)}$ as a linear function is better, but still attains values only in $[0,\infty)$. To truly exploit the full range of values that a linear function affords, we predict the log-odds as a linear function of $x$.

$$\text{Log-odds} = \log \frac{P(y=1|x)}{P(y=0|x)} = w^Tx$$

Solving this out for the probabilities, we see that the probability is given by the sigmoid function

$$P(Y=1|x) = \cfrac{e^{w^Tx}}{1+e^{w^Tx}} = \frac{1}{1+e^{-w^Tx}}$$

We now have a model which predicts probabilities:

$$ \begin{align*} P(Y=y ~~\vert~~X=x,w) &= \begin{cases} p & y=1 \\ 1-p & y=0 \end{cases}\\~\\ &=p^y(1-p)^{1-y} \end{align*} $$

Now, how do we find the so-called “best” probabilities? The standard method to do so is Maximum Likelihood Estimation (MLE), which maximizes the probability of the training data under our model. Intuitively, we would like to find the model which was most likely to generate the data in the first place.

In the following calculations, we’ll use the abbreviation $p_i = \cfrac{e^{w^Tx_i}}{1+e^{w^Tx_i}}$ (our predicted probability for $y_i=1$ under $x_i$)

Unlike linear regression above, this has no closed-form solution. To solve, instead we have two methods: gradient descent and convex optimization

Gradient Ascent

The gradient of the objective is given by

$$\nabla_w = \sum_{i=1}^n y_i x - p_i x = \sum_{i=1}^n (y_i-p_i)x$$
class LogRegGD:
    def __init__(self,a=.001,nIter=1000):
        self.a = a # Learning Rate
        self.nIter = nIter # Number of gradient update

    def probabilities(self,xs):
        return 1/(1+np.exp(-1*xs.dot(self.w)))

    def fit(self,xs,ys):
        """
        Take gradient steps
        """
        xs = np.hstack([xs,np.ones((len(xs),1))]) # Add bias term
        self.w = np.random.rand(xs.shape[1])
        for i in range(self.nIter):
            ps = self.probabilities(xs)
            self.w += self.a*(ys-ps).dot(xs) # Take Gradient Descent term


    def predict(self,x):
        x = np.concatenate((x,[1])) # Add bias term
        return self.w.dot(x) > 0 # If w^Tx > 0, then p > .5

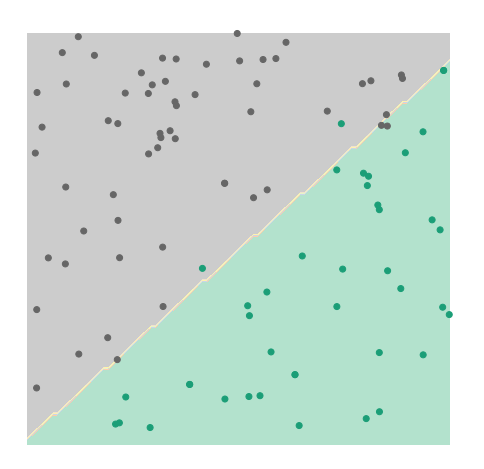

Show the code
logistic_classifier = LogRegGD()
logistic_classifier.fit(Xs,Ys)
print("Accuracy is ",accuracy(logistic_classifier,test_Xs,test_Ys))
plot(logistic_classifier,test_Xs,test_Ys)

Accuracy is  0.941

Convex Formulation

The objective function is convex; we can use a convex optimization library to solve. We’ll use cvxpy (install guide here). This involves extra libraries, but has a significant advantage over the gradient descent objective in that it returns the exact solution, without worrying about hyperparameters and divergence concerns.

Recall from above that the objective is given by

$$\arg \max_{w} \sum_{i=1}^n y_i w^Tx - \log 1+e^{w^Tx}$$

We can write this in matrix notation as

$$y^TXw - \mathbf{1}^T\text{Logistic}(Xw)$$

Where $\mathbf{1}$ is the ones-vector in $\mathbb{R}^n$, and $\text{Logistic}(\cdot)$ applies the logistic function $f(x) = \log 1 + e^x$ to each entry

import cvxpy as cvx

class LogRegCVX:
    def fit(self,xs,ys):
        # Adding a bias term
        xs = np.hstack([xs,np.ones((len(xs),1))])

        # Formulating the objective
        w = cvx.Variable(xs.shape[1])
        objective = -1*(ys.dot(xs)*w-cvx.sum_entries(cvx.logistic(xs*w)))

        # Solving and storing the optimal value
        cvx.Problem(cvx.Minimize(objective)).solve()
        self.w = np.array(w.value).flatten()

    def predict(self,x):
        x = np.concatenate((x,[1])) # Add bias term
        return self.w.dot(x) > 0 # If w^Tx > 0, then p > .5

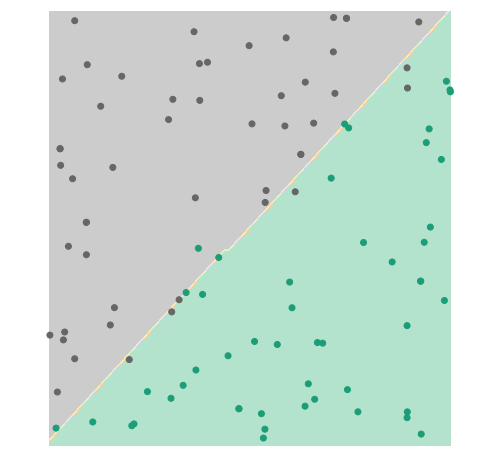

Show the code
cvx_logistic_classifier = LogRegCVX()
cvx_logistic_classifier.fit(Xs,Ys)
print("Accuracy is ",accuracy(cvx_logistic_classifier,test_Xs,test_Ys))
plot(cvx_logistic_classifier,test_Xs,test_Ys)

Accuracy is  0.935
